5455G 660HP Dual Ball Bearing Turbo - Forward Rotation - Standard .72A/R 4inch-T4 Divided .85 V-Band Pulsar Turbo Systems

Pulsar Turbo Systems 5455G 660HP Dual Ball Bearing Turbo – Forward Rotation – .72 A/R / .85 V-Band (G30-660)

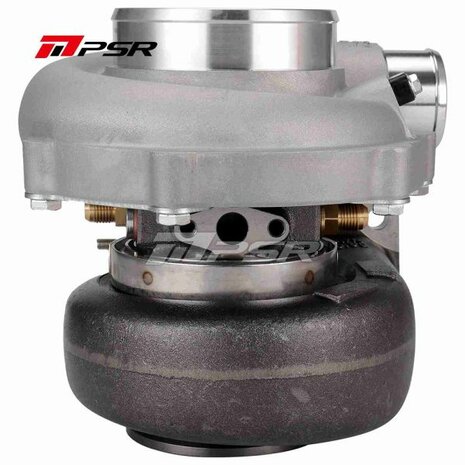

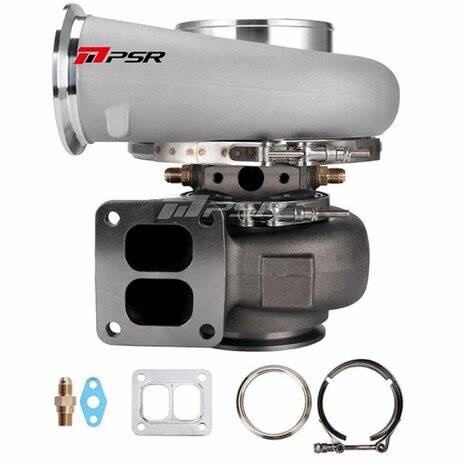

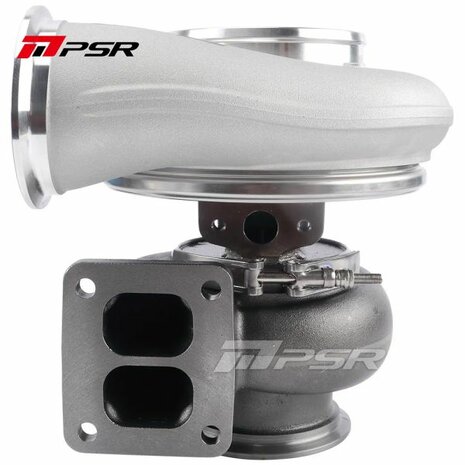

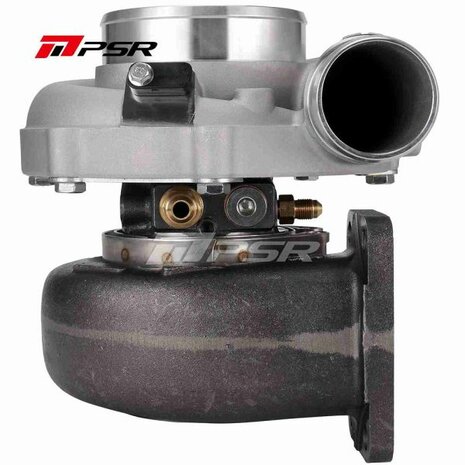

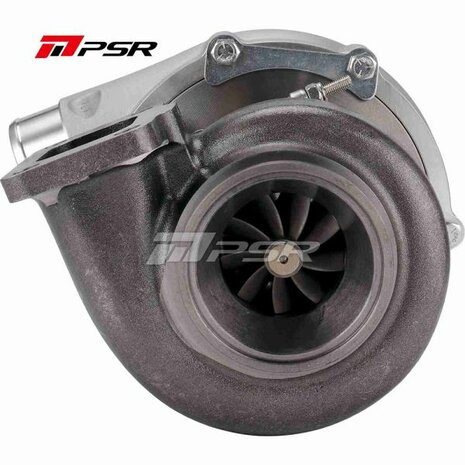

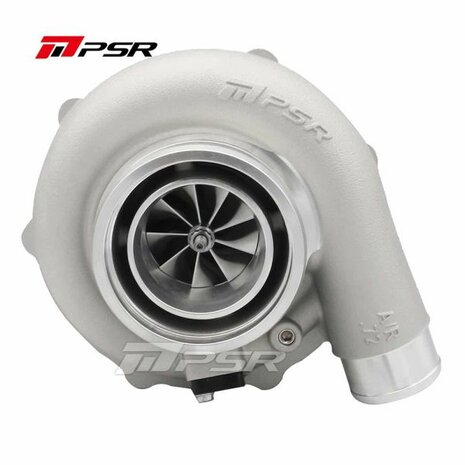

The Pulsar Turbo Systems 5455G turbo, also known as the G30-660, is a high-performance turbocharger designed to support up to approximately 660 horsepower. Featuring a dual ceramic ball bearing system, it delivers faster spool, improved throttle response and increased durability by reducing shaft movement.

This turbo is equipped with a G-Aero billet compressor wheel and a high-temperature Inconel turbine wheel, ensuring optimal performance under demanding conditions. The anti-surge ported shroud compressor housing with integrated speed sensor port enhances airflow stability and efficiency.

This is a universal product suitable for a wide range of vehicle makes and models, depending on the application.

Specifications

• Power: up to approximately 660 HP
• Compressor wheel: 54 x 67 mm billet (9-blade G-Aero)
• Turbine wheel: 60 x 55 mm Inconel 713C (9-blade G-Aero)
• Rotation: Forward rotation
• Bearing system: Dual ceramic ball bearing
• Compressor housing: Standard
• Compressor A/R: .72
• Compressor inlet: 4 inch hose connection
• Compressor outlet: 2 inch hose connection
• Turbine inlet: T4 divided
• Turbine outlet: 3 inch V-band
• Turbine A/R: .85
• Water ports: 2x M14 x 1.5
• Oil inlet: 7/16-24 UNF with pre-installed -4AN restrictor
• Oil outlet: Standard T3 oil drain flange
