LS/B20 VTEC conversion kit SpeedFactory Honda

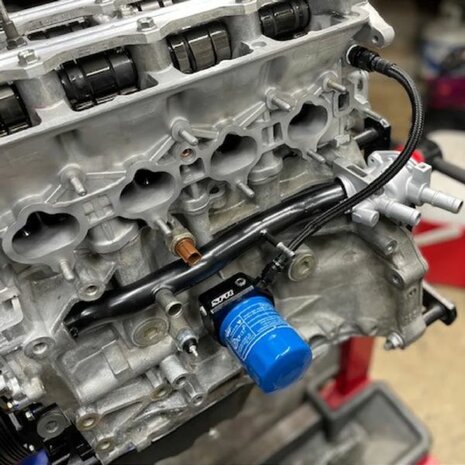

The SpeedFactory Racing LS/B20 VTEC Conversion Kit is designed for anyone installing a VTEC head on an LS (B18A/B) or B20 engine, seeking the highest quality and completeness. The design provides 46% more oil flow through the sandwich plate to the oil filter and additional 1/8 NPT ports, allowing oil supply to a turbo as well as connection of an oil pressure or temperature sensor. The hardened chromoly steel alignment dowels do not bend and maintain precise cylinder head positioning under heavy load. The kit comes with a SpeedFactory Racing MLSS-HP head gasket in various bore sizes for an easy conversion.

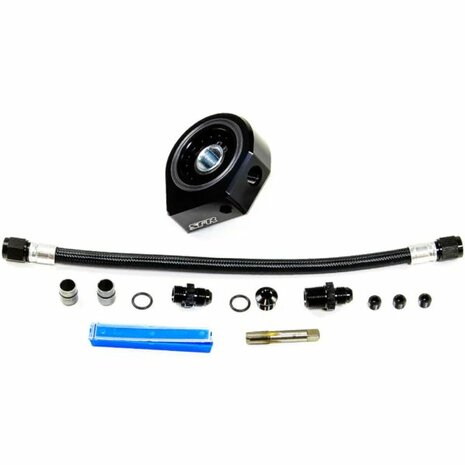

Kit features:

• Sandwich plate with three ports: one -6 ORB port for the LS/VTEC oil feed line and two 1/8 NPT ports for oil feed to a turbo, temperature sensor, pressure gauge, or other applications

• -6AN Teflon-lined stainless steel braided oil feed line with black nylon outer sleeve

• Two hardened chromoly steel VTEC conversion dowels

• -6 AN to -6 ORB fitting for oil feed to the sandwich plate

• -6 AN to 3/8 BSPT fitting for oil feed to the cylinder head

• -6 ORB sealing plug

• 1/8 NPT bottoming tap

• Three 1/8 NPT pipe plugs

• CNC-machined from 6061-T6 billet aluminum, black anodized for durability and corrosion resistance

• Laser-etched SpeedFactory Racing logo
